Specifications

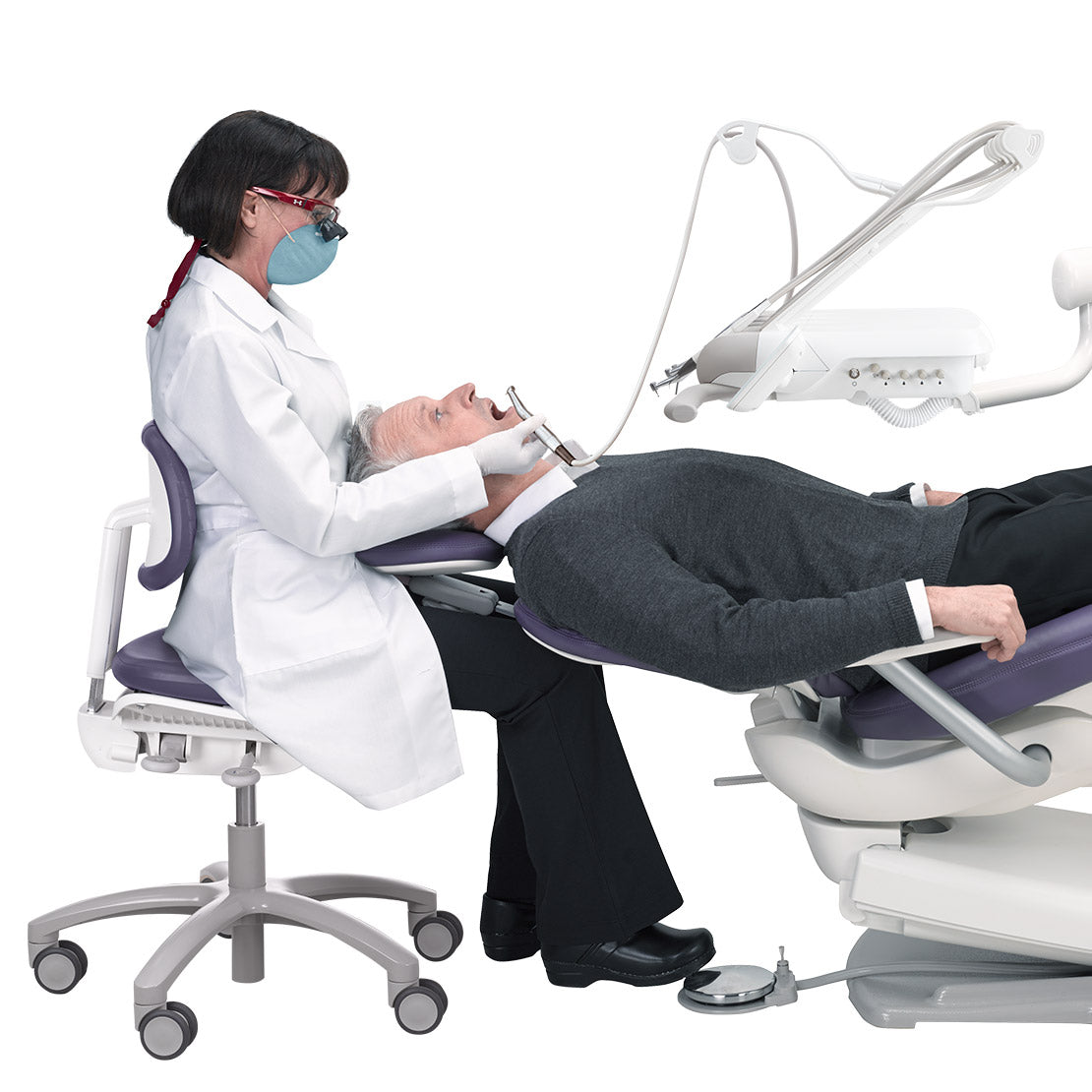

Ultra-thin, flexible backrest
Enables you to tuck your knees under the chair, providing ergonomic access to the oral cavity.

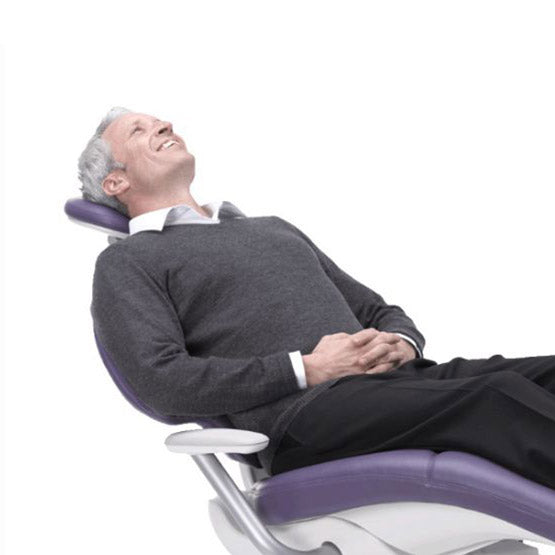

Dual-articulating, gliding headrest
Adjusts easily for optimal patient positioning. Available in locking knob and lever release styles.
Hybrid chairlift system
Combines the power of a hydraulic base and the smoothness of an electro-mechanical tilt, allowing simultaneous movement for quicker patient positioning.

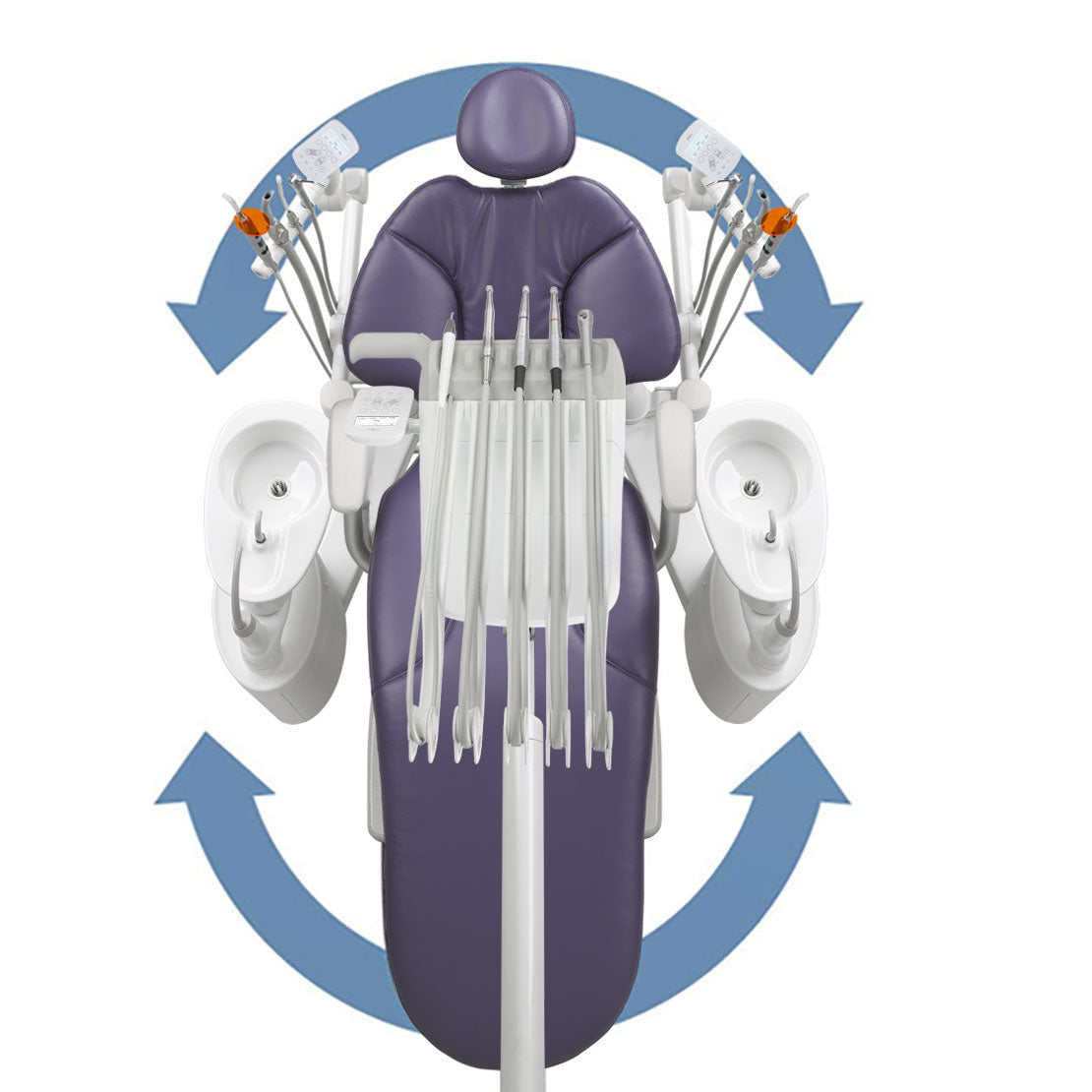

60º swivel with brake
Gives you 30º rotation on each side of centre.
Cut-away, cast iron baseplate
Allows you (and your team) to roll in closer to the patient and work in a comfortable, natural position.
2-position armrests
Combines comfortable arm/elbow support with a robust load-bearing design for easy patient entry and exit.
Base height range
High point: 31.5" (800 mm) Low point: 13.75" (349 mm), or 14.75" (375 mm) with dual mount
Backrest
Ultra-thin, flexible. 1" (25 mm) with formed upholstery
Chair swivel
60° (30° each side of center)
Lift system
Hybrid drive (electromechanical tilt, hydraulic base)
Headrest
Dual-articulating gliding headrest with locking knob (Optional lever release style)
Armrests
2-position
Power supply
Integrated 300-watt
Chair control
Delivery system control pad or foot switch
Mount style
Floating - post mount or Radius (single or dual mounting)
Upholstery options
Sewn or formed
UL Load rating
UL rated to 400 lb (181 kg) maximum patient load (Load rating is based on UL requirement of 4X (1600 lb/725 kg) overload static testing)
Sewn Upholstery
Sky
Riviera
St John
Pacific
Bayou
Diplomat Blue
Cyan
Parrot
Arugula
Poseidon
Lapis
Plum
Sassy
Apricot
Fuchsia
Vivid Punch
Red
Curry
Almond
Chamois
Pecan
Papyrus
Sable
Cave
Arctic
Timberwolf
Granite
Charcoal
Schooner
Ebony
Formed Upholstery
Sky Blue
Indigo
Sapphire
Amethyst
Lemongrass
Hazelnut
Driftwood
Tawny
Carbon
Black
